3 Styles Of Suture Barb | One Machine Produces Three Mainstream Barb Designs
As the demand for barbed sutures continues to grow worldwide, manufacturers require a Suture Barbed Cutting Machine capable of producing different barb geometries while maintaining high cutting accuracy and excellent production efficiency.
Our Suture Barbed Cutting Machine has been specifically developed for the automated manufacturing of medical barbed sutures. Unlike conventional machines that are limited to a single barb design, our system can manufacture three mainstream barb types without replacing any mechanical components.
Simply select the appropriate recipe on the HMI, and the machine automatically switches to the required cutting parameters.
This significantly reduces changeover time while maximizing production flexibility.
Three Mainstream Barb Designs
Our Suture Barbed Cutting Machine supports the three most widely used barb geometries in the global medical suture industry.
1. Single-angle Barb
The Single-angle Barb is produced using one cutting operation.
The blade enters the suture at entry angle α, producing a single barb.
This barb design was first commercialized by leading U.S. manufacturers and later became one of the most widely adopted barb geometries in the global barbed suture market.
It is widely used because of its simple geometry, reliable manufacturing process, and excellent tissue-holding performance.
2. Dual-angle Barb (Push)
The Dual-angle Push Barb is produced using two cutting operations.
The first cut is made at entry angle α, followed by a second push cut.
Compared with the single-angle design, this barb provides improved barb geometry and stronger tissue engagement.
3. Dual-angle Barb (Bevel)
The Dual-angle Bevel Barb is also produced using two cutting operations.
The first cut is made at entry angle α, followed by a second angled cut at entry angle β.
This design provides excellent barb consistency and is commonly used in high-performance barbed sutures.
No Mechanical Changeover Required
One of the biggest advantages of our Suture Barbed Cutting Machine is its flexibility.
Traditional barbed suture manufacturing equipment often requires operators to replace cutters, fixtures, or machine components when changing barb designs.
Our machine requires no mechanical changeover.
To change from:
- Single-angle Barb
- Dual-angle Push Barb
- Dual-angle Bevel Barb
Operators simply load another recipe from the HMI.
No cutter replacement.
No fixture replacement.
No mechanical adjustment.
Recipe switching takes only a few seconds.
This greatly improves production efficiency while reducing downtime.
Intelligent Recipe Management
Each barb design contains three independent parameter groups:
- Barb ↙
- Barb ↘
- Other
Barb ↙ contains all machining parameters for left-facing barbs.
Barb ↘ contains all machining parameters for right-facing barbs.
Both parameter groups share the same structure, making recipe management simple and intuitive.
The recipe system allows manufacturers to save, edit, copy, export, and import production parameters for different products.
Designed for High-Precision Barbed Suture Manufacturing
Our Suture Barbed Cutting Machine has been developed specifically for high-precision medical applications.
The machine is compatible with several commonly used suture materials, including:
- PDO
- PGCL
- PCL
- PP
Based on extensive testing and cooperation with global manufacturers, PDO, PGCL, and PCL consistently provide the best barb cutting quality due to their more uniform cross-sectional geometry.
These materials enable highly consistent barb dimensions, cutting angles, and surface quality.

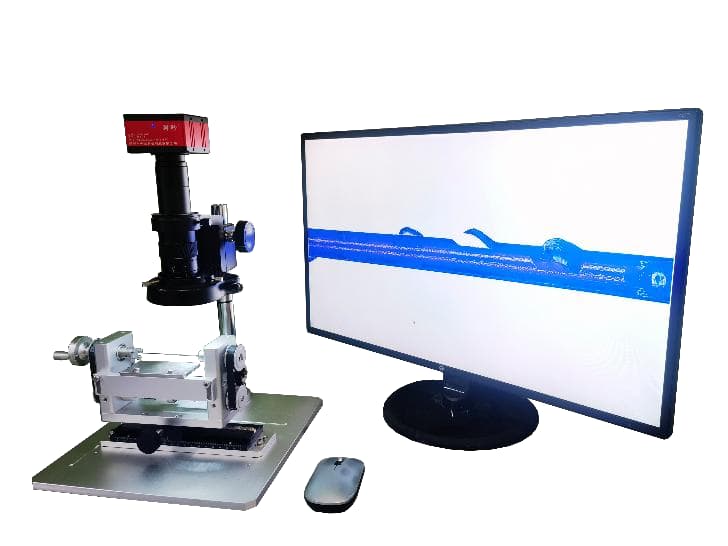

Verify Barb Quality with Our Vision Inspection System
To verify the cutting quality of barbed sutures, Changzhou Hotlink also provides a Medical Suture Vision Inspection System.
Instead of relying on visual judgment alone, manufacturers can accurately inspect whether the barb geometry meets the required product specifications.
Our inspection system magnifies the barbed suture by up to 150×, allowing even the smallest barb details to be clearly observed.
Critical inspection items include:
- Barb height
- Barb length
- Barb angle
- Barb pitch
- Barb spacing
- Barb consistency
- Cutting quality
- Surface condition
The inspection software has been independently developed by Changzhou Hotlink and supports both automatic measurement and manual measurement.
Automatic Measurement
The software automatically measures the critical barb dimensions and generates inspection data for quality control and production traceability.
Manual Measurement
Engineers can also manually measure, compare, and analyze barb geometry during product development or process optimization.

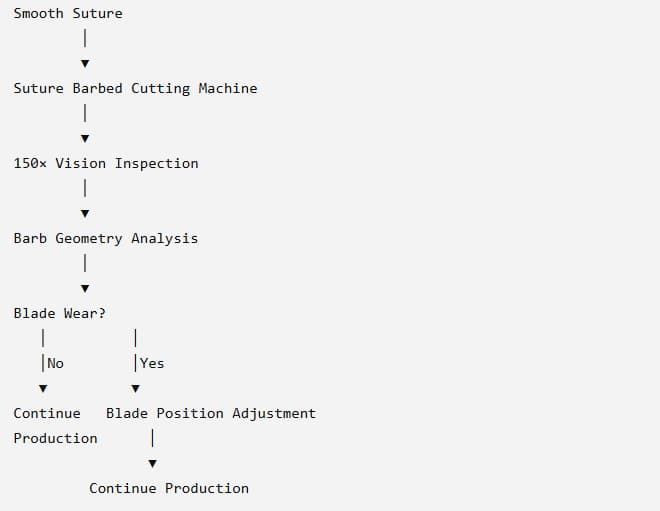

Optimize the Cutting Process Through Inspection
If the inspection results indicate that the barb geometry does not fully meet the desired specifications, operators can easily optimize the cutting process.
By adjusting the corresponding Recipe parameters on our Suture Barbed Cutting Machine, manufacturers can fine-tune the cutting process to achieve the required barb dimensions and consistency.
This closed-loop manufacturing process enables:
- Higher cutting accuracy
- Better barb consistency
- Faster process optimization
- Reduced trial-and-error during new product development
- Stable long-term production quality
The combination of our Suture Barbed Cutting Machine and Vision Inspection System provides manufacturers with a complete solution for precision barbed suture production, from barb cutting to quality verification and process optimization.
Verify Barb Quality with Our Vision Inspection System
To verify the cutting quality of barbed sutures, Changzhou Hotlink also provides a Medical Suture Vision Inspection System.
Instead of relying on visual judgment alone, manufacturers can accurately inspect whether the barb geometry meets the required product specifications.
Our inspection system magnifies the barbed suture by up to 150×, allowing even the smallest barb details to be clearly observed.
Critical inspection items include:
- Barb height
- Barb length
- Barb angle
- Barb pitch
- Barb spacing
- Barb consistency
- Cutting quality
- Surface condition
The inspection software has been independently developed by Changzhou Hotlink and supports both automatic measurement and manual measurement.
Automatic Measurement
The software automatically measures the critical barb dimensions and generates inspection data for quality control and production traceability.
Manual Measurement
Engineers can also manually measure, compare, and analyze barb geometry during product development or process optimization.
Optimize the Cutting Process Through Inspection
If the inspection results indicate that the barb geometry does not fully meet the desired specifications, operators can easily optimize the cutting process.
By adjusting the corresponding Recipe parameters on our Suture Barbed Cutting Machine, manufacturers can fine-tune the cutting process to achieve the required barb dimensions and consistency.
This closed-loop manufacturing process enables:
- Higher cutting accuracy
- Better barb consistency
- Faster process optimization
- Reduced trial-and-error during new product development
- Stable long-term production quality
The combination of our Suture Barbed Cutting Machine and Vision Inspection System provides manufacturers with a complete solution for precision barbed suture production, from barb cutting to quality verification and process optimization.
Our complete solution combines cutting, inspection, measurement, and process optimization, helping manufacturers produce high-quality barbed sutures with greater confidence and consistency.
Why Choose Our Suture Barbed Cutting Machine?
Compared with conventional barbed suture production machines, our solution offers:
- Produce three mainstream barb designs on one machine
- No mechanical changeover required
- Automatic recipe switching
- High cutting consistency
- Excellent barb geometry
- Suitable for multiple suture materials
- High production efficiency
- Easy operation and maintenance
- Flexible customization for customer requirements
Whether you are developing a new barbed suture production line or upgrading an existing manufacturing process, our Suture Barbed Cutting Machine provides a reliable and efficient solution.
Contact Us
If you are looking for a professional Suture Barbed Cutting Machine manufacturer, we would be pleased to discuss your project.
We can provide:
- Machine specifications
- Sample evaluation
- Production capacity analysis
- Material compatibility testing
- Customized automation solutions
- Complete barbed suture production solutions
Contact us today to learn how our Suture Barbed Cutting Machine can improve your barbed suture manufacturing efficiency and product quality.
