Model Specifications

• Machine Dimensions: 800 × 300 × 500 mm
• Cycle Time: 2–4 seconds per piece
• Crimping Accuracy: Up to ±0.1 mm
• Drive System: Servo motor

Product Overview

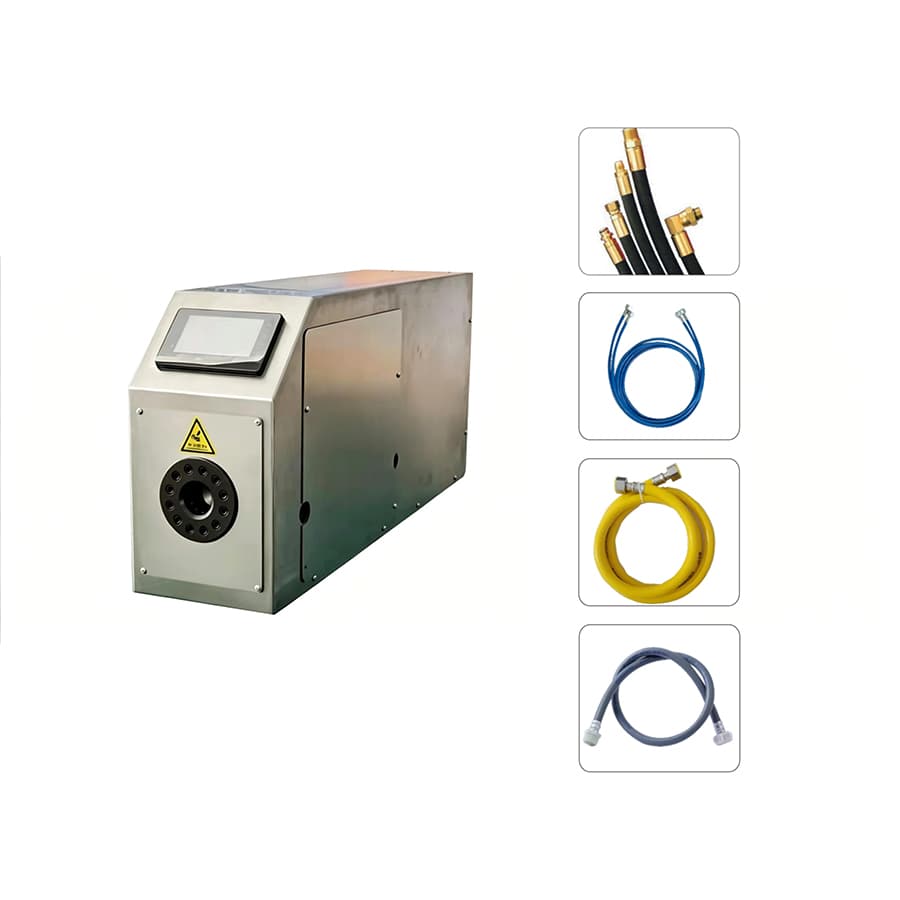

The O-Ring Inserting Machine Assembly Machine Crimping Machine is designed for crimping and tightening various types of steel ferrules and metal sleeves.

Driven by a servo motor, the machine provides stable operation and consistent crimping performance. The crimping accuracy can reach ±0.1 mm, making it suitable for products that require precise and repeatable sleeve tightening.

Its compact and lightweight structure saves installation space. The machine also features a clean design and low-noise operation, making it suitable for use as a standalone workstation or as part of a hose assembly production line.

Key Features

• Suitable for crimping various steel ferrules and metal sleeves
• Servo motor driven
• Crimping accuracy up to ±0.1 mm
• Cycle time of 2–4 seconds per piece
• Stable and repeatable crimping operation
• Compact and lightweight design
• Clean machine structure
• Low-noise operation

Advantages

High Crimping Accuracy

The crimping accuracy can reach ±0.1 mm, helping maintain consistent finished dimensions.

Stable Servo Drive

The servo motor provides controlled and reliable crimping movement for stable production.

Fast Operating Cycle

A cycle time of 2–4 seconds per piece supports efficient batch production.

Compact Structure

With dimensions of only 800 × 300 × 500 mm, the machine requires minimal installation space.

Quiet Operation

The low-noise design helps create a cleaner and more comfortable working environment.

Typical Operating Process

1. Manually load the product
2. Position the steel ferrule or metal sleeve
3. Start the machine
4. Servo-driven crimping and tightening
5. Manually remove the finished product

Applications

Suitable for:

• Steel ferrules
• Metal sleeves
• Hose ferrules
• Braided hose sleeves
• Flexible pipe sleeves
• Water hose connection components
• Washing machine inlet hose components
• Customized metal sleeve products

Why Choose Hotlink?

Hotlink specializes in customized assembly and crimping equipment. Our machines are developed according to the customer’s product dimensions, component structure, crimping requirements, and production process.

From compact standalone machines to complete automatic assembly lines, Hotlink provides reliable equipment designed to improve production efficiency and maintain consistent product quality.

Hotlink — We Build Machines Around Your Products.
