PP Push Fit Duct Coupler / Plastic Hose Barb Fitting Assembly Machine

Overview

The PP Push Fit Duct Coupler / Plastic Hose Barb Fitting Assembly Machine is a fully automatic assembly system designed for the high-speed production of push-fit duct couplers, hose barb fittings, and splicer mender adapters used for air, water, and fuel applications.

The machine is capable of automatically assembling 9 individual components into one finished product with high precision, stable quality, and minimal operator intervention.

---

Product Assembly

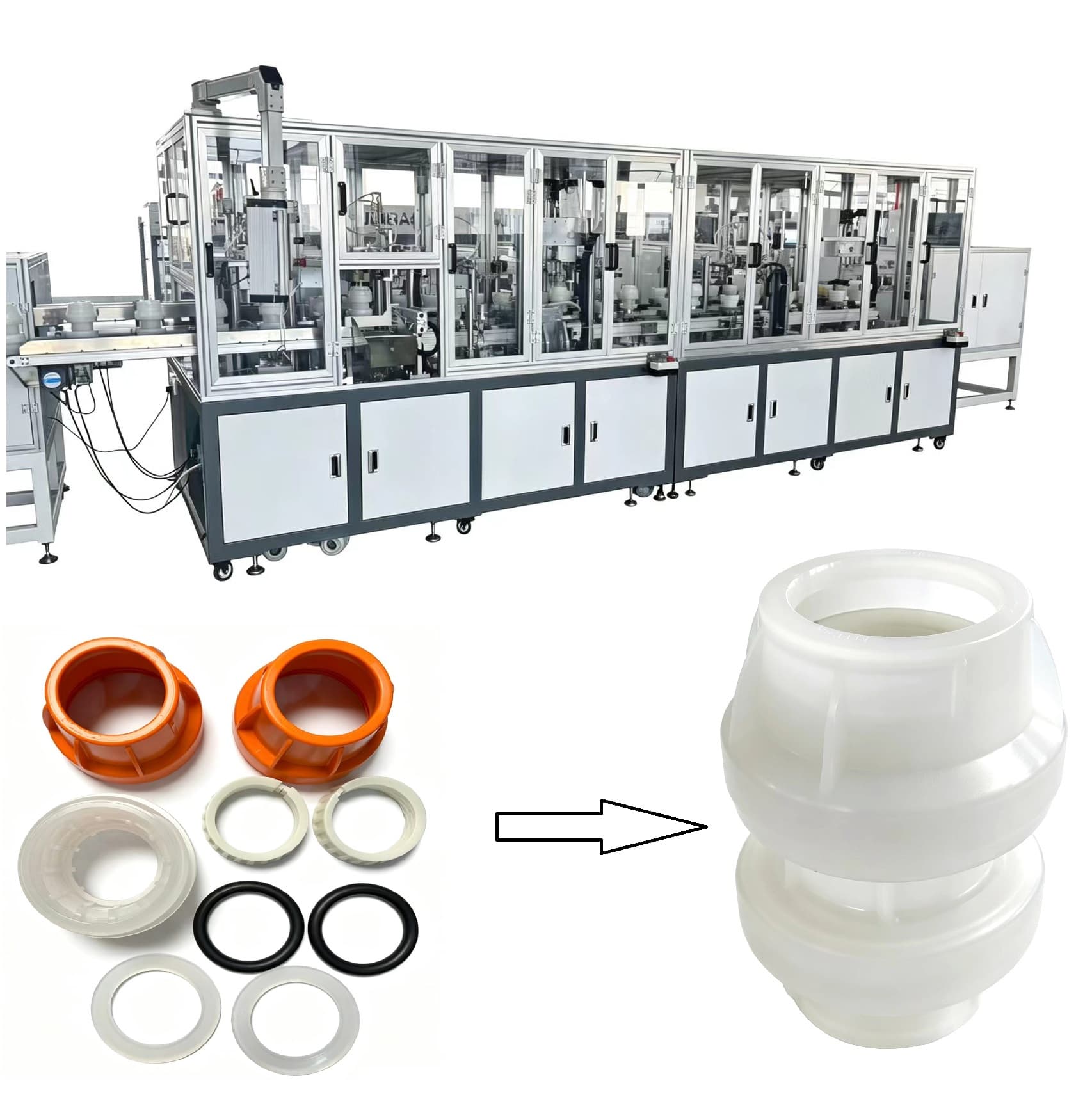

The machine automatically assembles the following 9 components:

• 2 × Plastic Housings
• 1 × Main Body
• 2 × Silicone O-rings
• 2 × Plastic Washers
• 2 × Wide Retaining Rings

Each component is automatically fed, positioned, assembled, and inspected to ensure consistent product quality.

Machine Features

Fully Automatic Assembly

The entire assembly process is completed automatically, including component feeding, positioning, assembly, inspection, and finished product output.

Linear Transfer Design

Unlike rotary indexing systems, this machine adopts a linear transfer architecture, providing excellent rigidity and stability.

Even for large or heavy products, the robotic grippers maintain a secure grip throughout the entire production process, ensuring reliable operation at every workstation.

High-Speed Production

• Production Capacity:
  Up to 14 finished products per minute

The machine is designed for continuous, stable, high-volume production.

Large Capacity Feeding System

The machine is equipped with:

• Large-capacity feeding hoppers
• Multiple vibratory bowl feeders

These systems provide continuous automatic feeding, significantly reducing manual intervention and enabling long periods of unattended operation.

---

Control System

The machine utilizes internationally recognized automation components, including:

• Siemens PLC
• Siemens HMI Touch Screen
• SICK Sensors
• SMC Pneumatic Components

The combination of these premium components ensures high reliability, precise control, and easy maintenance.

---

Low-Noise Design

To improve the working environment, the machine is equipped with:

• Fully enclosed dust-proof covers
• Sound-insulating enclosure

These features effectively reduce operating noise while protecting internal components from dust and contamination.

---

Alarm Management

The control system provides comprehensive alarm management, including:

• Real-time alarm notifications
• Alarm history records
• Alarm statistics and summaries
• Easy fault diagnosis and maintenance

This enables operators and maintenance personnel to quickly identify and resolve production issues, minimizing downtime.

---

Advantages

• Fully automatic assembly of 9 components
• Linear transfer system for superior stability
• Suitable for large and heavy products
• Siemens PLC & Siemens HMI
• SICK sensors and SMC pneumatic components
• Large-capacity automatic feeding system
• Dust-proof and sound-insulated enclosure
• Alarm history and statistical analysis
• Stable, reliable, and easy-to-maintain design
• Supports customized machine configurations based on customer requirements

---

Applications

Suitable for manufacturing:

• PP Push Fit Duct Couplers
• Plastic Hose Barb Fittings
• Splicer Mender Adapters
• Air Line Connectors
• Water Pipe Connectors
• Fuel Line Connectors
• Plastic Fluid Connectors
• Pneumatic Fittings
• Industrial Quick Connectors

---

Hotlink provides fully customized assembly solutions.
The machine can be customized according to your product dimensions, assembly process, production capacity, inspection requirements, and factory layout, helping customers achieve highly efficient, reliable, and intelligent manufacturing.

We have extensive experience in designing and manufacturing automatic assembly machines for the irrigation industry, including valve assembly machines, fitting assembly machines, coupler assembly machines, connector assembly machines, and other customized automation equipment.

Our solutions integrate automatic feeding, precision assembly, O-ring insertion, pressing, leak testing, vision inspection, and final packaging, helping customers improve production efficiency and product quality.

You can find more examples of our irrigation automation projects on our website or by visiting the links below.

We also provide customized assembly solutions based on your product specifications and production requirements.
