Stapler Inserting Nail Assembly Machine
Main Features
AUTO
Stapler Inserting Nail Assembly Machine
Stapler Inserting Nail Assembly Machine
The Stapler Inserting Nail Assembly Machine is an automated system designed for loading surgical staples into the cartridges of endoscopic linear cutting staplers. It is specifically used for the precise and efficient installation of staples into stapler cartridges.

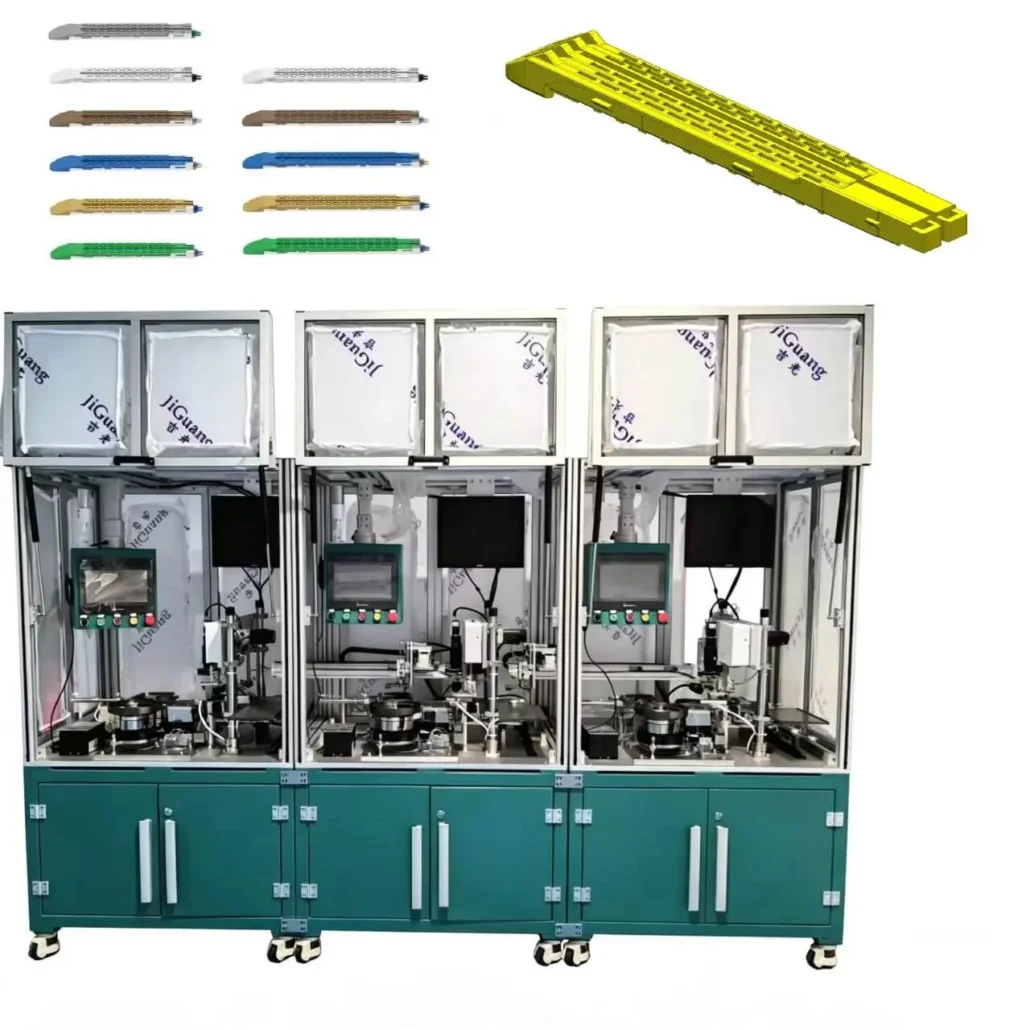

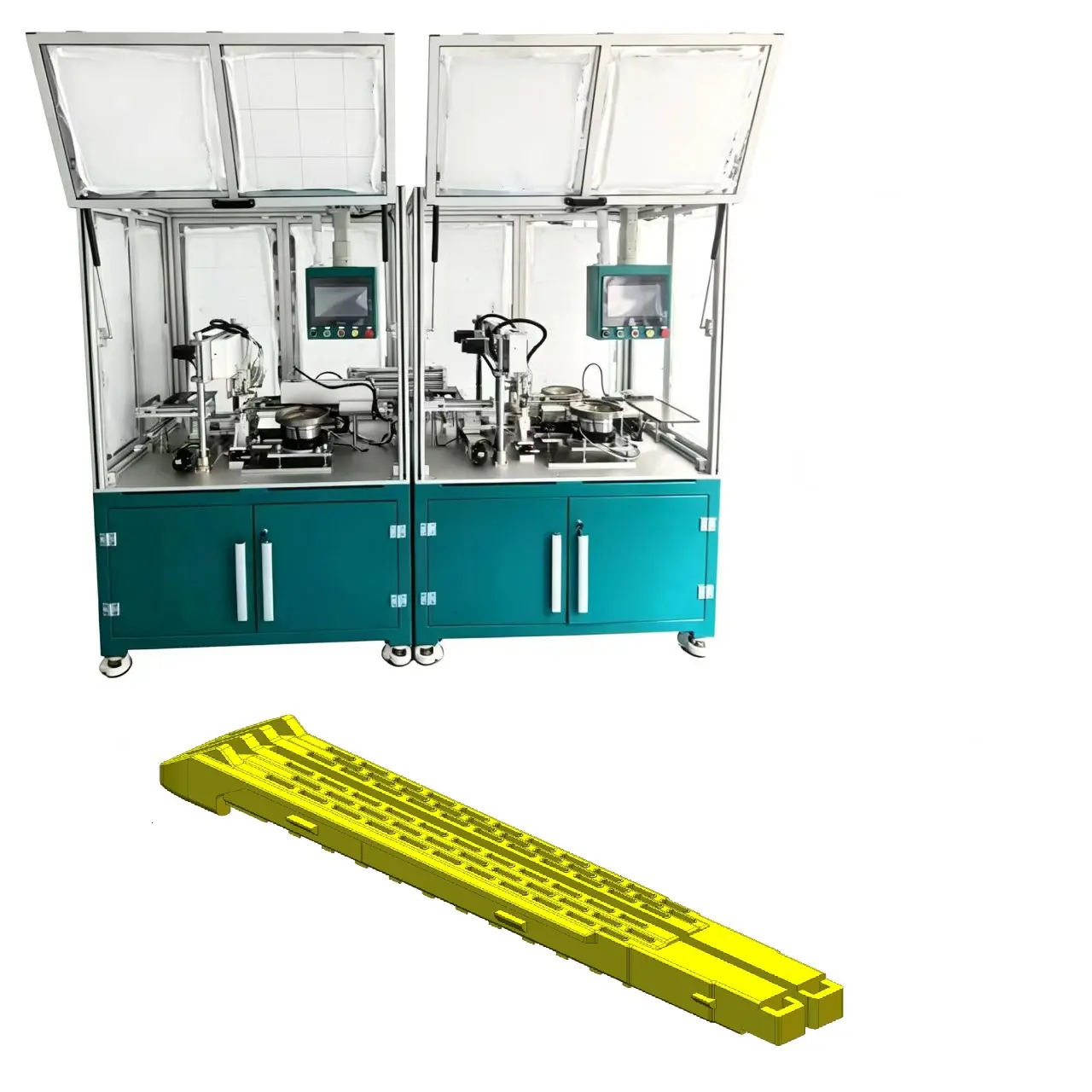

The machine comprises a main frame, a staple feeding unit, a cartridge feeding unit, a staple assembly unit, and a staple assembly quality inspection system.
The staple assembly unit is centrally positioned within the main frame. The staple feeding unit and the cartridge feeding unit are arranged on the front and rear sides of the assembly unit, respectively. The quality inspection system for staple assembly is installed on the upper part of the frame to ensure the accuracy and reliability of the assembly process.
This configuration enables stable operation, high assembly precision, and consistent product quality, meeting the stringent requirements of medical device manufacturing.
Endo Stapling System Assembly Machine
Main Functions
The utility model relates to a Stapler Inserting Nail Assembly Machine, comprising a housing, wherein a control box is fixedly connected to the left side of the top of the housing, and a support column is fixedly connected to the right side of the top of the housing. A motor is fixedly connected to the upper portion on the left side of the support column, and the output end of the motor is fixedly connected with a threaded rod. The left end of the threaded rod is rotatably connected with the control box through a bearing.
The device further comprises a threaded sleeve, a first electric push rod, an assembly machine body, a second electric push rod, a push block, an assembly platform, a sleeve, a third electric push rod, a mounting plate, a support frame, and rollers.
Through the coordinated operation of the housing, control box, support column, motor, threaded rod, threaded sleeve, first electric push rod, assembly machine body, second electric push rod, push block, assembly platform, sleeve, third electric push rod, mounting plate, support frame, and rollers, the utility model effectively overcomes the shortcomings of traditional stapler assembly processes, which rely on manual operation, resulting in low efficiency and a high risk of missing components during assembly.
The device significantly reduces manual labor intensity, improves assembly efficiency, and enables convenient mobility, thereby enhancing overall usability.
Improvement and Technical Features:
The latest version adopts a PPU cam-driven linear transfer mechanism, which significantly improves operating speed compared to conventional designs.
In addition, the system is equipped with two KEYENCE vision cameras for high-precision inspection, enabling accurate detection of missing or excess staple loading during the assembly process, thereby ensuring product quality and consistency.
