Automatic Blood Glucose Device Assembly Machine for Medical Devices

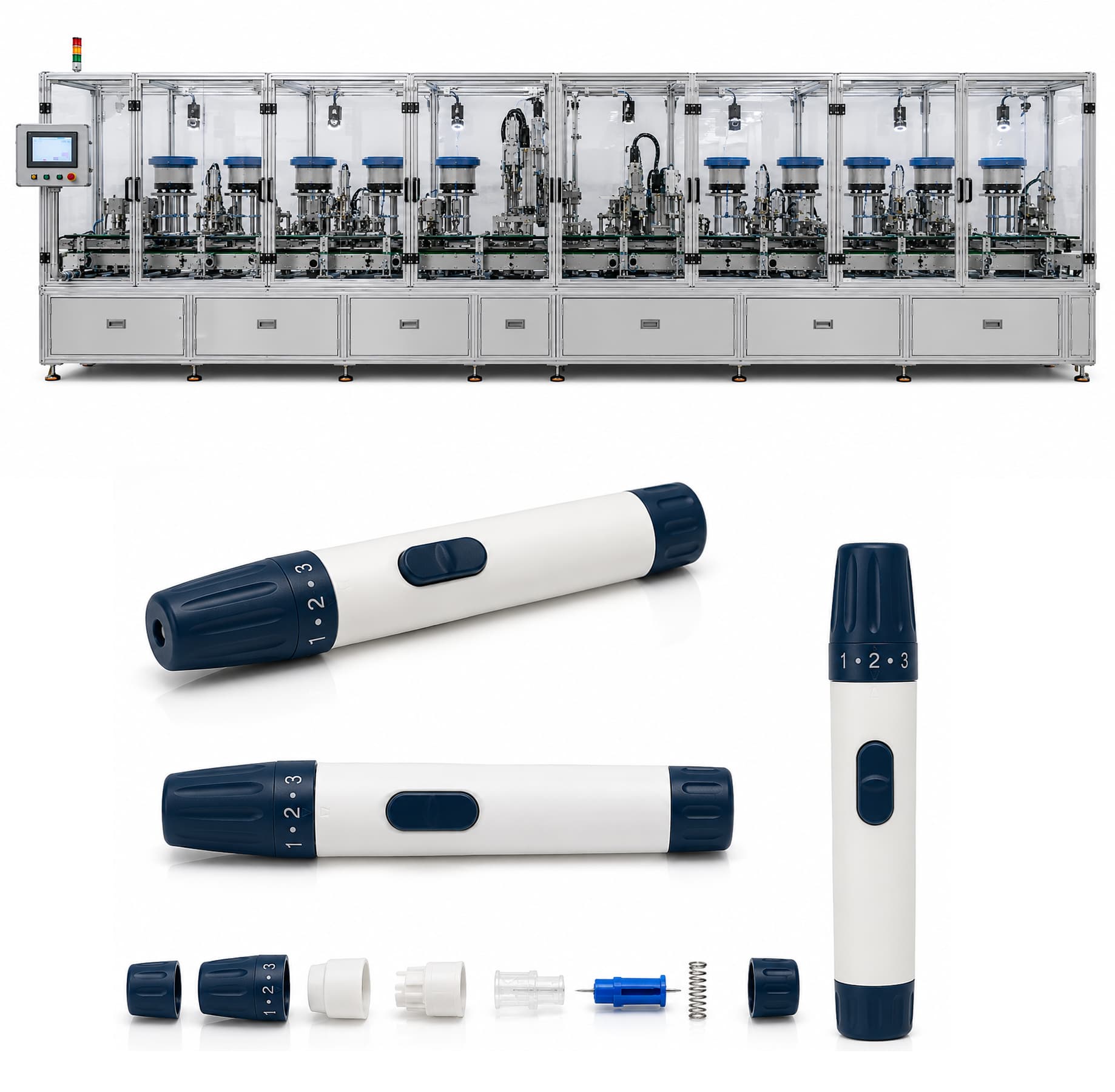

The Blood Glucose Device Assembly Machine is an automated production system designed for assembling blood glucose devices and disposable blood pens used in diabetes testing and blood sampling applications.

Hotlink provides customized automation solutions for medical device manufacturers who require high-precision assembly, stable production performance, and reliable quality control.

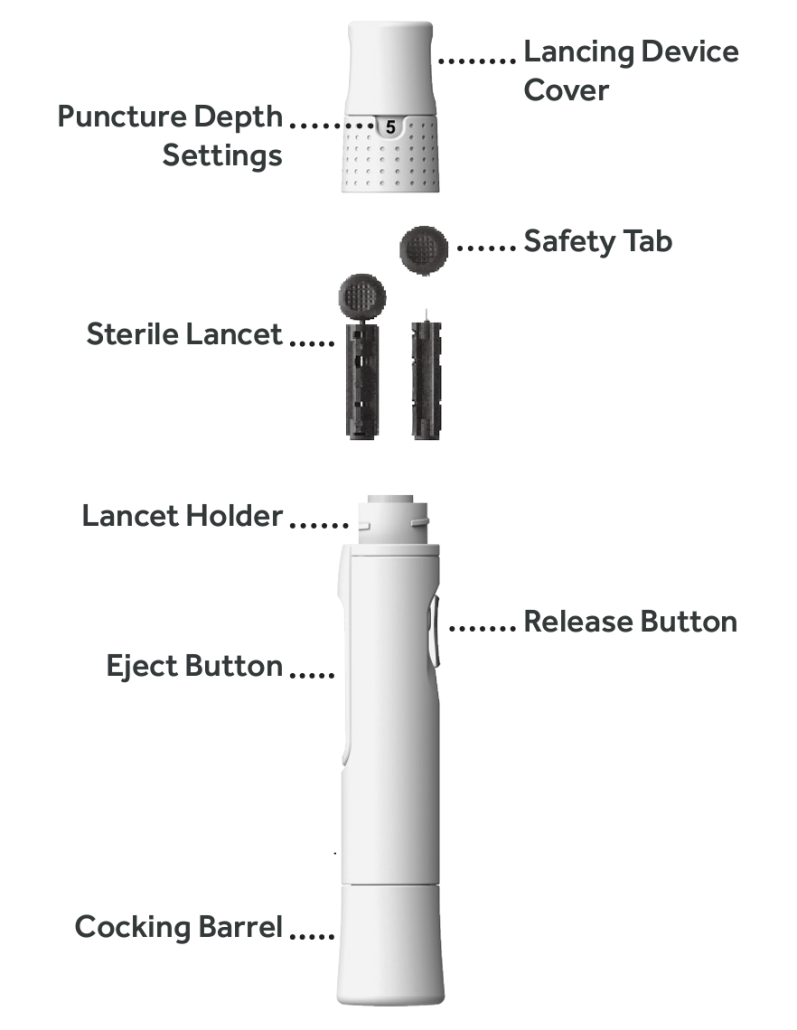

The machine automatically assembles multiple components, including:

Upper housing
Lower housing
Lancet needle
Button
Spring
Washer

Through automatic feeding, precision positioning, and intelligent vision inspection, the system improves assembly efficiency, reduces manual operations, and ensures consistent product quality.

Automatic Blood Glucose Device Assembly Process

The Blood Glucose Device Assembly Machine completes the entire assembly process through multiple automated stations.

1. Component Feeding Station

Operators load different components into the corresponding vibratory bowl feeders.

The automatic feeding system arranges and transfers components to each assembly station.

The machine supports feeding of:

Plastic housings
Lancet needles
Buttons
Springs
Washers

The stable feeding system ensures continuous production.

2. Upper and Lower Housing Assembly

The machine accurately positions and assembles the upper housing and lower housing.

The precision fixture controls the assembly position and ensures proper alignment between plastic components.

Therefore, the machine maintains stable assembly quality during continuous production.

3. Lancet Needle Assembly

The machine installs the lancet needle into the designated position.

Because the needle is a critical functional component, the system carefully controls the insertion position and assembly force.

This design prevents needle damage and ensures reliable product performance.

4. Spring Assembly

The machine automatically installs the spring component.

The assembly system controls the installation position to ensure the correct mechanical function of the finished blood glucose device.

5. Button and Washer Assembly

The machine installs the button and washer according to the product structure.

The precision assembly process ensures smooth operation and stable product performance.

Vision Inspection System

The Blood Glucose Device Assembly Machine integrates an intelligent vision inspection system.

The camera system checks:

Missing components
Incorrect assembly position
Lancet needle condition
Product appearance

When the system detects defective products, it automatically rejects them from the production line.

As a result, manufacturers can achieve stable quality control during mass production.

Flexible Production Configuration

The Automatic Blood Glucose Device Assembly Machine supports customized production requirements.

Customers can configure:

Production capacity
Feeding systems
Vision inspection systems
PLC brands
Servo motors
Sensors
Pneumatic components

Furthermore, Hotlink can customize the machine according to different product structures and factory layouts.

Complete Blood Glucose Device Manufacturing Solution

Hotlink provides a complete automation solution for blood glucose device manufacturing.

In addition to the Blood Glucose Device Assembly Machine, we also provide:

Blood Glucose Device Packaging Machine
Blood Lancet Assembly Machine
Blood Lancet Packaging Machine

By integrating assembly and packaging equipment, customers can achieve a complete automated production workflow from component feeding, assembly, inspection, and final packaging.

Related Medical Automation Equipment

Hotlink also provides customized automation machines for other medical disposable products, including:

Surgical Blade Assembly Machine
Surgical Blade Packaging Machine
Cell Culture Flask Assembly Machine
Cell Culture Flask Packaging Machine
Petri Dish Assembly Machine
Acupuncture Needle Packaging Machine

These solutions help medical manufacturers improve production efficiency, reduce labor requirements, and maintain consistent product quality.

Customized Automation Solution

Every medical device has unique product structures and manufacturing requirements.

Therefore, Hotlink provides customized automation solutions from process design to equipment manufacturing.

Our engineering team supports:

Assembly process development
Machine design
Production line integration
Installation
Technical support

Customers can also select preferred component brands according to their technical standards.

Contact Hotlink

If you are looking for a reliable Blood Glucose Device Assembly Machine, please contact Hotlink.

Our engineering team can provide a customized solution according to your product design, production capacity, and automation requirements.

We also welcome customers worldwide to visit our factory and discuss their medical device automation projects.

Main Functions

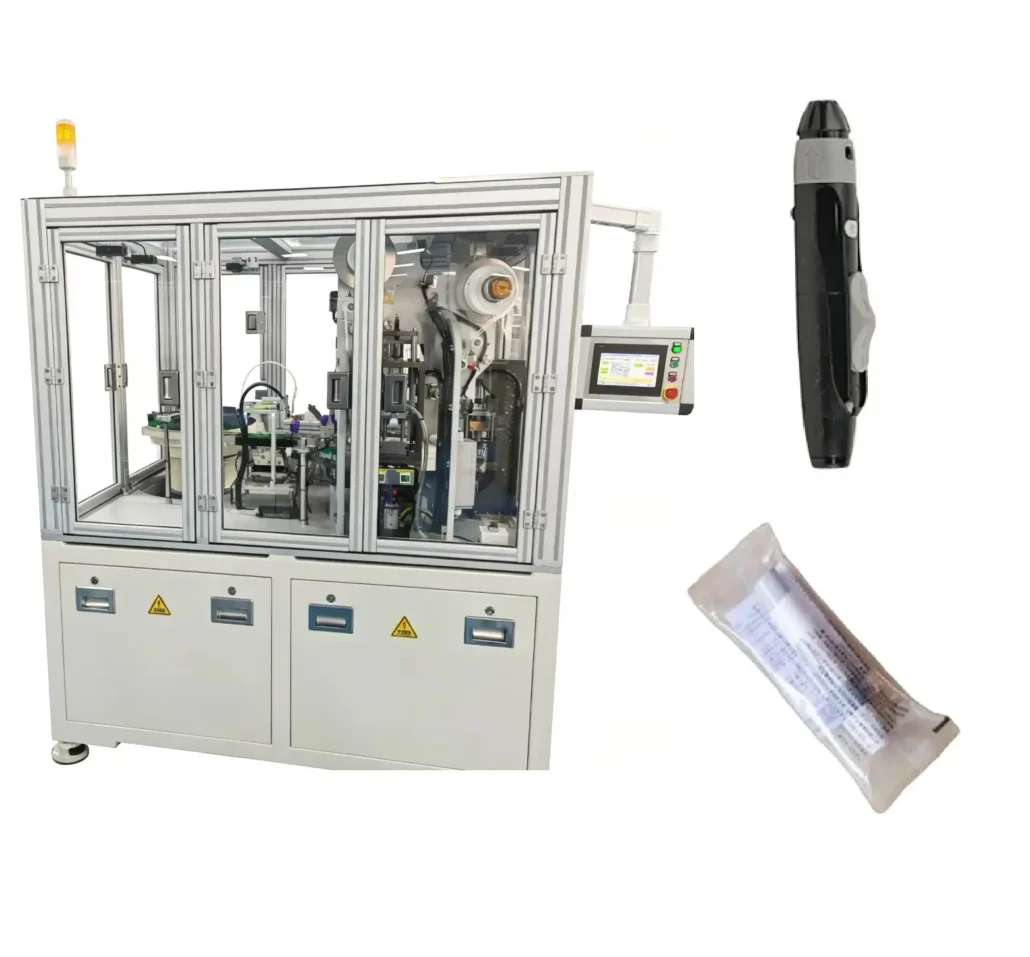

The Blood Glucose Device Packaging Machine is a fully automated horizontal packaging system designed for disposable blood devices, blood pens, and glucose-related medical products.

The machine integrates multiple packaging processes, including roll-fed film forming, automatic product loading, heat sealing, coding, and finished bag output.

With a flexible packaging structure and stable automation performance, the system helps medical device manufacturers improve production efficiency, reduce manual operations, and maintain consistent packaging quality.

The machine supports different product sizes and packaging requirements. Furthermore, customers can customize functions according to their production needs, including coding systems, feeding methods, and packaging specifications.

Automatic Blood Device Packaging Process

The packaging machine completes the following processes:

Roll Film Feeding
The machine automatically feeds plastic film from the roll material system.
Bag Forming
The film passes through the forming unit and creates individual packaging bags.
Automatic Product Loading
The feeding system transfers blood devices or blood pens into the formed bags.
Heat Sealing
The machine seals the packaging film to protect the product and maintain cleanliness.
Coding and Marking
The printing system adds production information, including date, batch number, and other required codes.
Finished Product Output
The packaged products automatically move to the collection area or the next production process.

Complete Blood Device Manufacturing Solution

In addition to the Blood Glucose Device Packaging Machine, Hotlink also provides automatic assembly equipment for blood glucose devices.

Our complete solution includes:

Blood Glucose Device Assembly Machine
Blood Glucose Device Packaging Machine
Blood Lancet Assembly Machine
Blood Lancet Packaging Machine

By integrating assembly and packaging systems, customers can achieve a complete automated workflow from component assembly, inspection, and final packaging.
