Surgical Blade Assembly Machine
Automatic Surgical Blade Assembly Machine for Disposable Medical Scalpels
The Surgical Blade Assembly Machine provides a fully automatic solution for assembling disposable medical scalpels. Hotlink designed this machine for medical device manufacturers who require high precision, stable quality, and flexible production.
The machine automatically assembles the handle, surgical blade, anti-rust paper, and protective cover into a complete disposable scalpel. Moreover, it supports different blade lengths and handle specifications. Therefore, manufacturers can produce multiple product models on one machine while reducing production costs.
Furthermore, the Surgical Blade Assembly Machine offers flexible production capacity. Customers can customize the output according to their manufacturing requirements, whether for small-batch production or high-volume manufacturing.
Disposable Surgical Blade Structure
A disposable surgical scalpel consists of three main components:
- Surgical blade
- Plastic handle
- Protective blade cover
Each component contributes to the safety and performance of the final product.
The ergonomic handle provides a comfortable grip during surgery. High-quality stainless steel forms the blade and delivers excellent sharpness and durability. In addition, the protective cover helps prevent accidental injury and contamination during transportation and storage.
Flexible Production and Fast Mold Change
The Surgical Blade Assembly Machine supports different blade lengths and product specifications.
Operators can quickly change between different models by replacing the mold and selecting the corresponding production recipe. As a result, the machine reduces downtime and improves manufacturing flexibility.
Moreover, the intelligent control system allows fast product changeover without complicated mechanical adjustments. Consequently, manufacturers can respond quickly to changing production requirements.

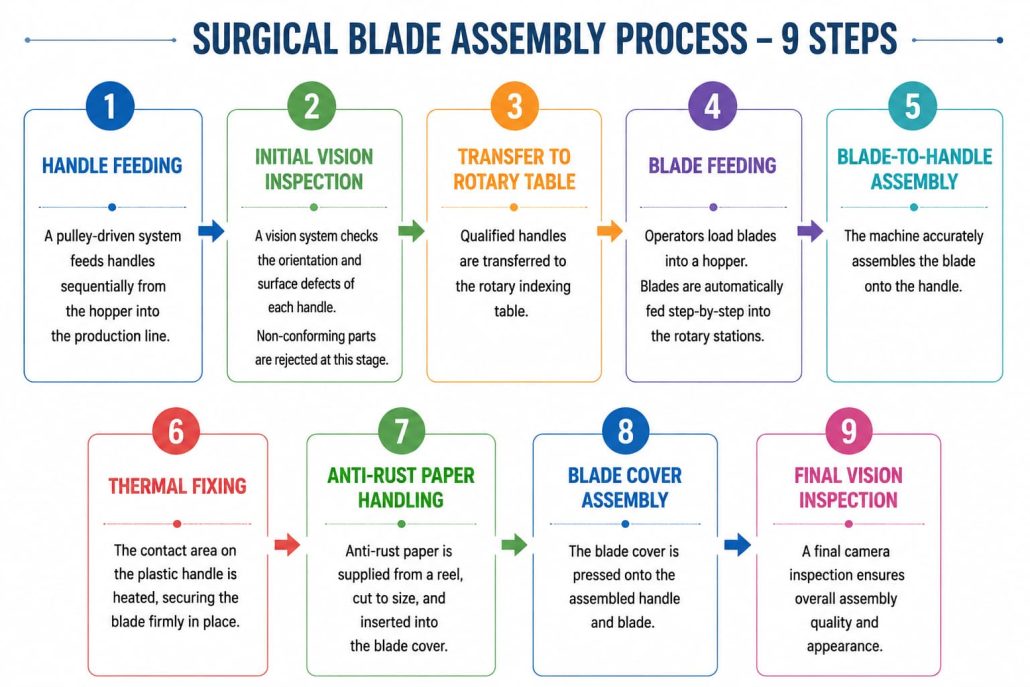

Surgical Blade Assembly Machine Process Overview
The Surgical Blade Assembly Machine completes the following production process automatically.

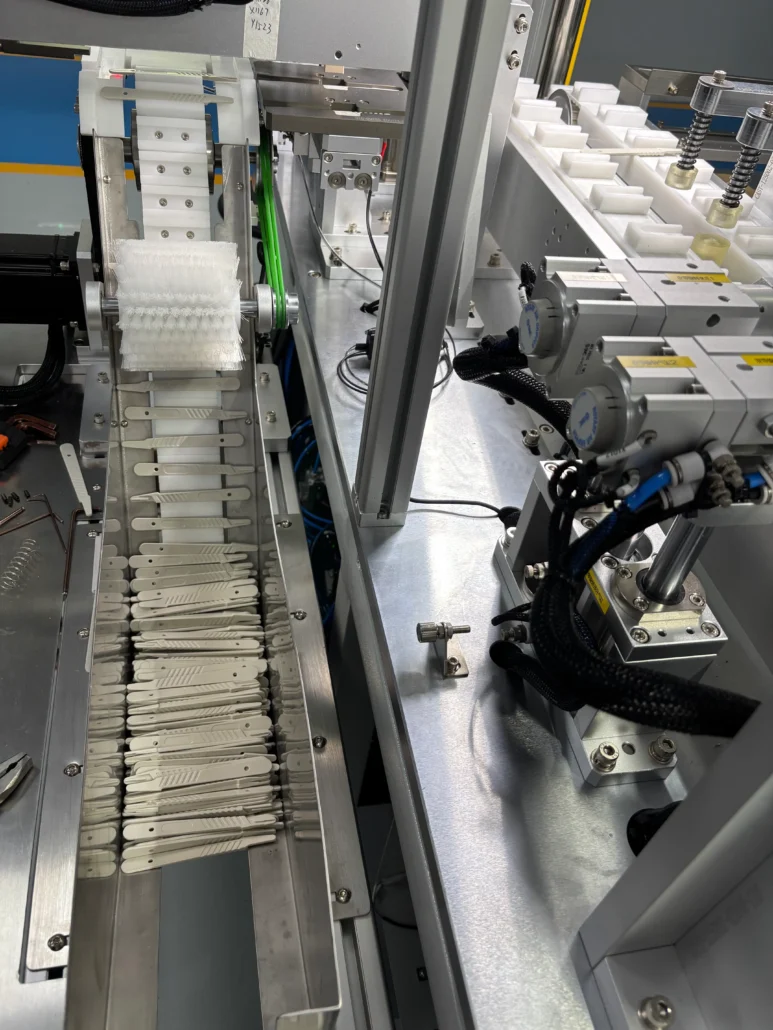

Step 1. Handle Loading
Operators place a large quantity of plastic handles into the designated hopper. The machine automatically feeds the handles one by one into the production line for the following assembly process.
Step 1. Handle Loading
Operators place a large quantity of plastic handles into the designated hopper. The machine automatically feeds the handles one by one into the production line for the following assembly process.

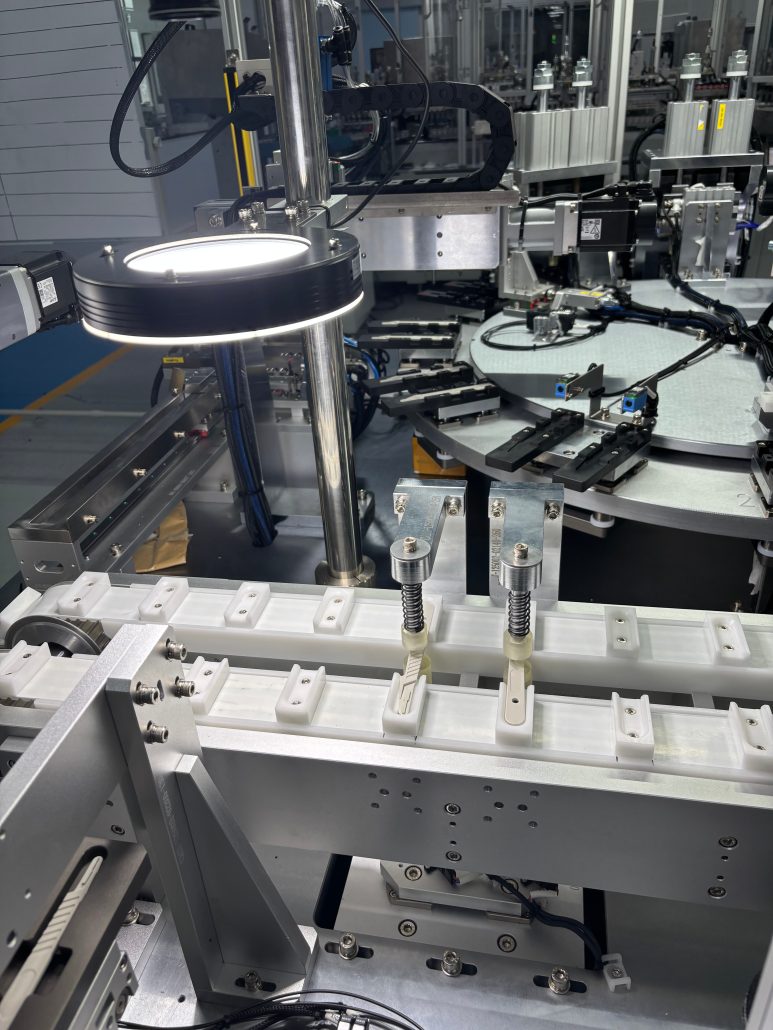

Step 2. Initial Vision Inspection
The vision inspection system checks the handle orientation and surface quality.
The system automatically rejects defective handles before assembly. Therefore, only qualified products continue to the next station.

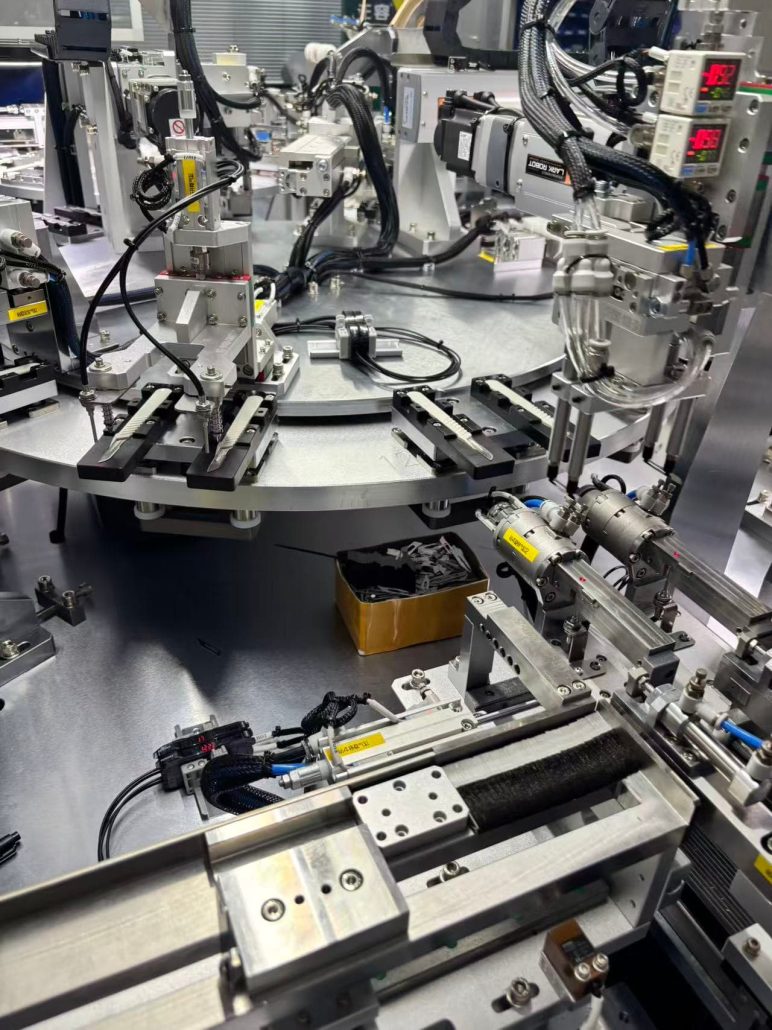

Step 3. Transfer to the Rotary Indexing Table
The transfer mechanism moves qualified handles onto the rotary indexing table for the following assembly operations.

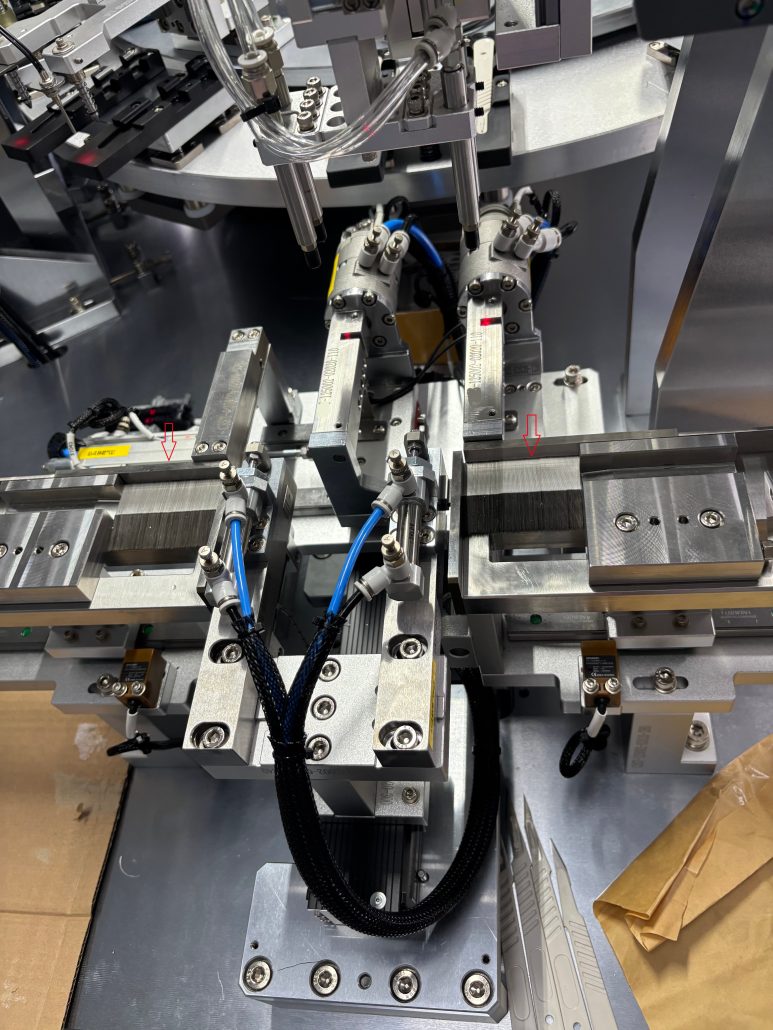

Step 4. Blade Feeding
Operators load surgical blades into the blade hopper.
The automatic feeding system transports each blade accurately to the assembly station.

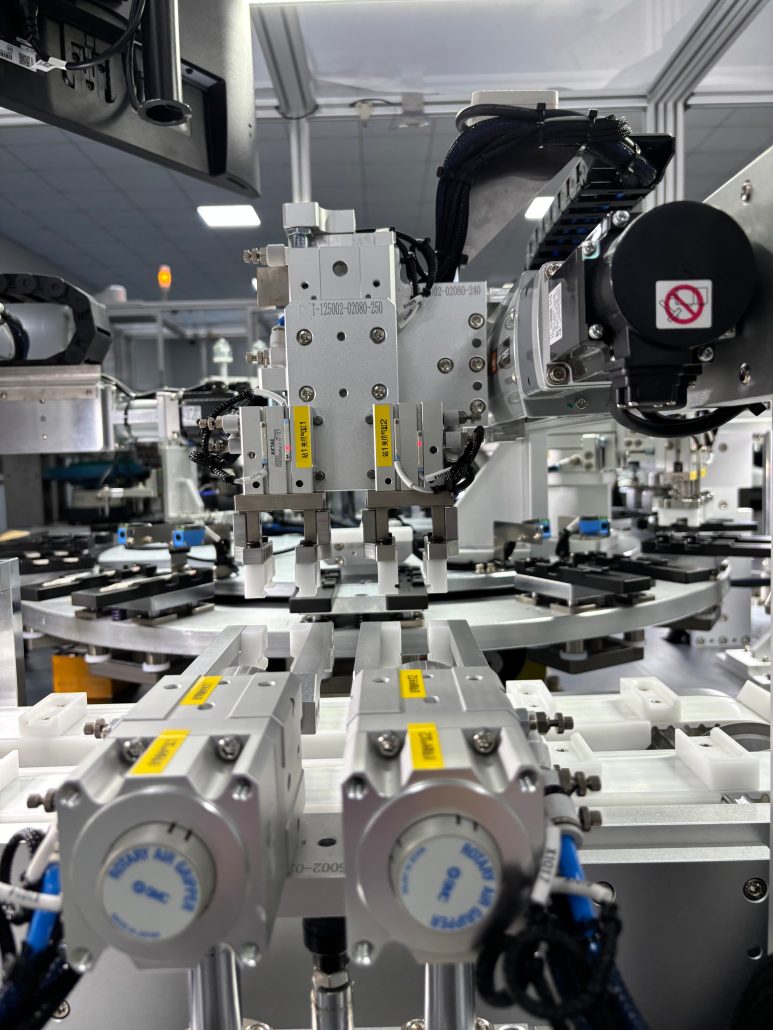

Step 5. Blade-to-Handle Assembly
The assembly mechanism accurately installs the surgical blade onto the plastic handle.
The precision positioning system ensures consistent assembly quality throughout the production process.

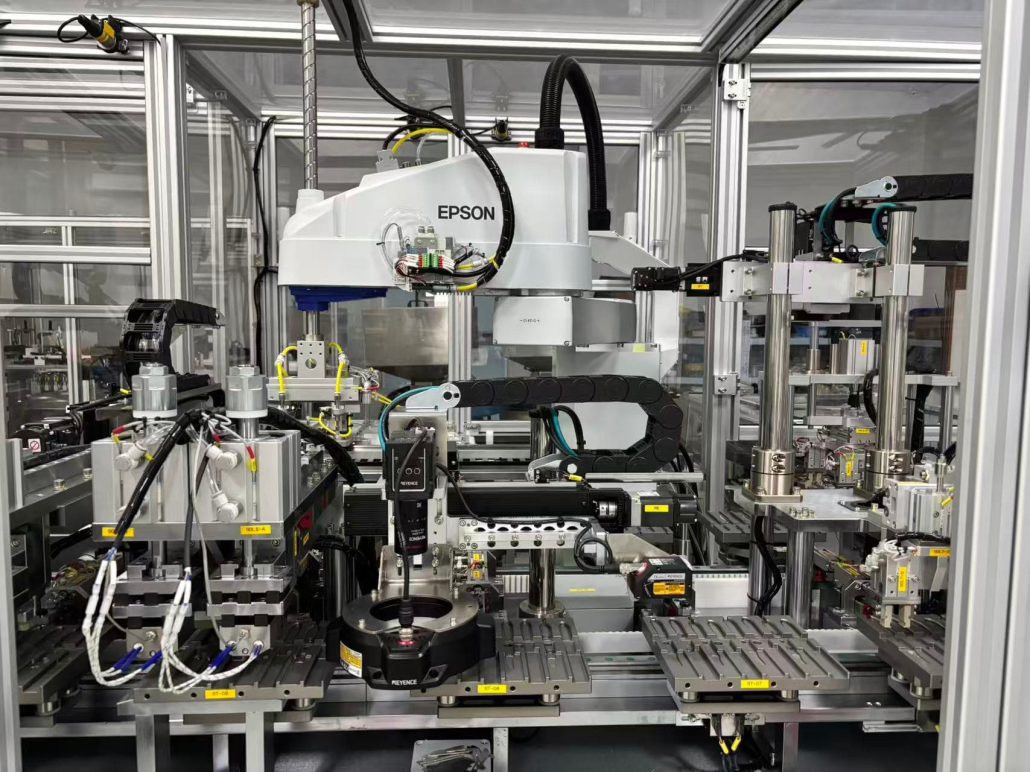

Step 6. Thermal Fixing
The heating system softens the contact area of the plastic handle.
The machine then securely fixes the blade in position, ensuring reliable bonding strength and long-term stability.

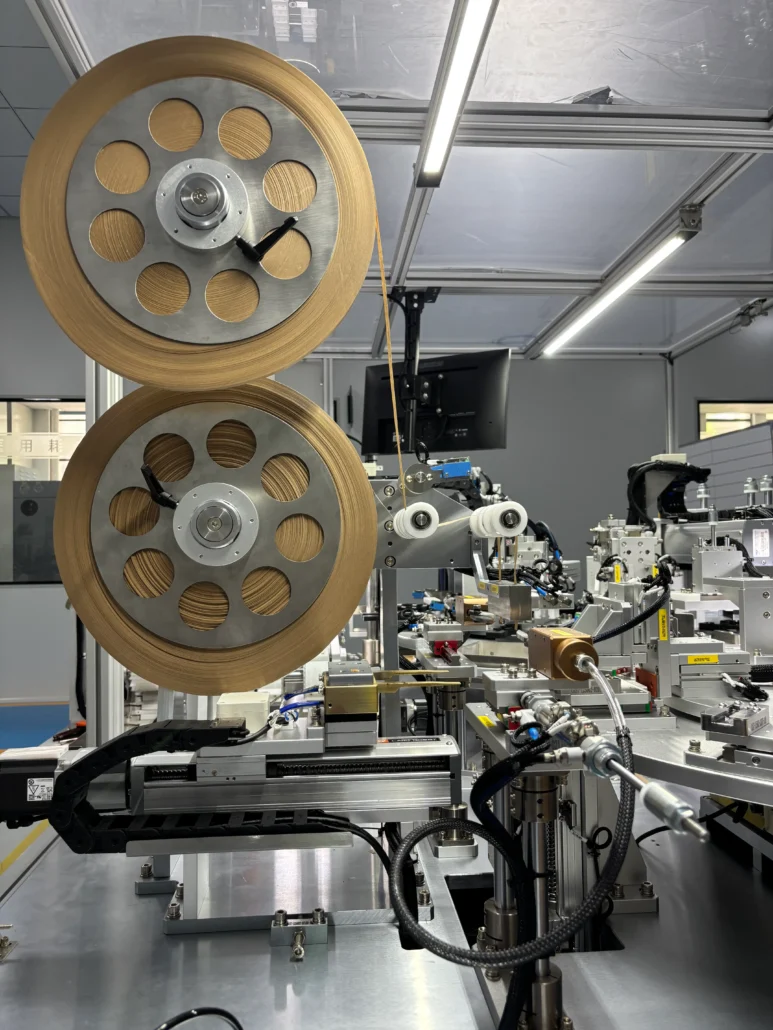

Step 7. Anti-Rust Paper Feeding
The machine automatically unwinds anti-rust paper from the reel.
Next, it cuts the paper to the required length and inserts it into the protective blade cover.
This process protects the blade during storage and transportation.
Step 8. Blade Cover Assembly
The assembly station automatically presses the protective cover onto the completed surgical blade.
The system ensures stable assembly quality while protecting the blade edge.
Step 9. Final Vision Inspection
The final vision inspection system checks the complete surgical blade assembly.
Inspection items include:
- Blade position
- Handle assembly
- Protective cover installation
- Product appearance
- Assembly quality
Consequently, only qualified products proceed to the packaging process.
Flexible Machine Configuration
Every production facility has different technical standards. Therefore, Hotlink provides customized machine configurations.
Customers can choose preferred brands for:
- PLC
- Servo motors
- Vision inspection systems
- Cameras
- Sensors
- Pneumatic components
- Electrical components
Furthermore, our engineering team customizes the machine according to customer products, factory layouts, and production capacity.
Complete Surgical Blade Manufacturing Solution
Hotlink provides more than a Surgical Blade Assembly Machine.
We also manufacture complete automation solutions for disposable surgical blade production, including:
- Surgical Blade Production Line

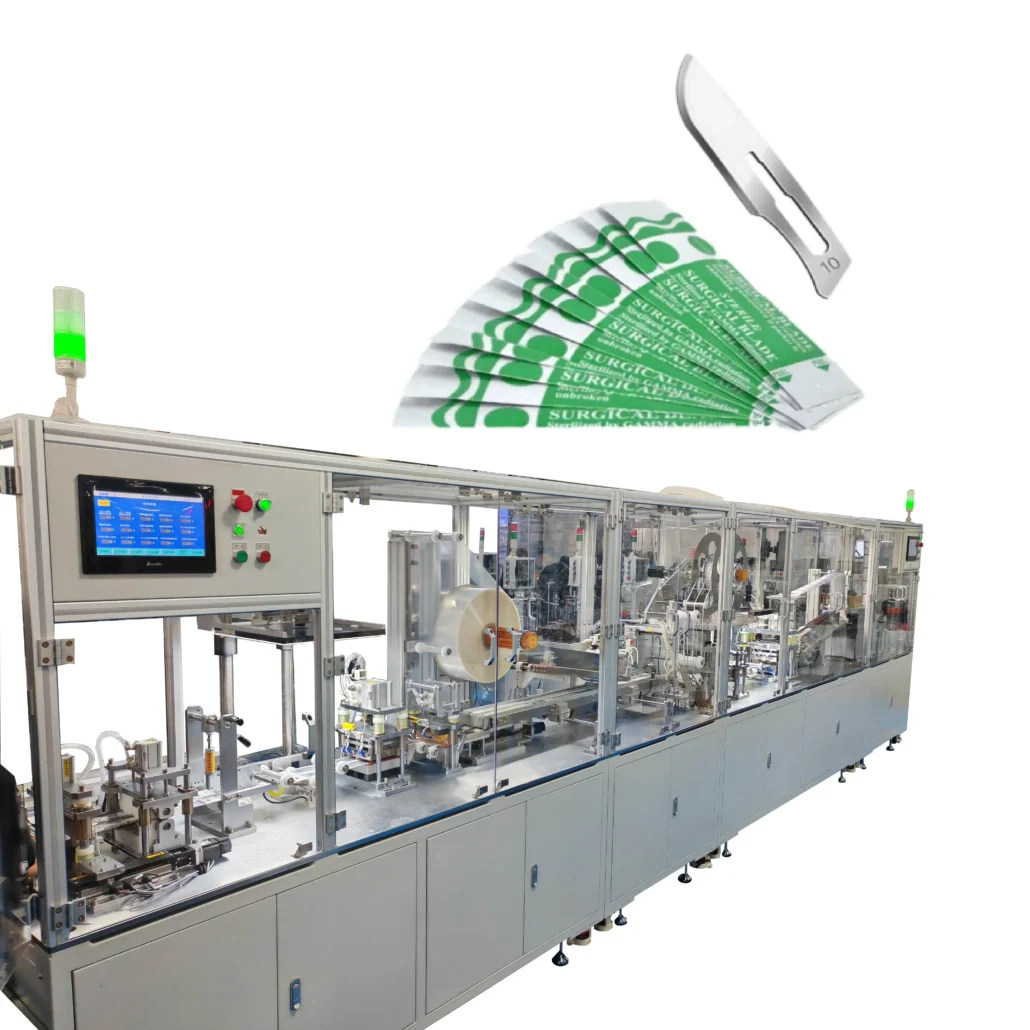

- Surgical Blade Packaging Machine
- Automatic Surgical Blade Assembly Machine
- Customized Medical Disposable Assembly Machines
By integrating these machines, customers can build a complete automated manufacturing solution from blade assembly to final packaging.
For more information, please visit the following pages:
- Surgical Blade Production Line
- Surgical Blade Packaging Machine
Contact Us
If you are looking for a reliable Surgical Blade Assembly Machine, Hotlink can provide a customized automation solution according to your products and production requirements.
Our engineering team will help you optimize your production process, improve assembly quality, and increase manufacturing efficiency.
Furthermore, we warmly welcome customers from around the world to visit our factory. During your visit, you can see our machines operating in production, communicate directly with our engineers, and explore the most suitable automation solution for your project.
Contact us today to discuss your surgical blade manufacturing requirements.
Main Functions of the Surgical Blade Assembly Machine
The Surgical Blade Assembly Machine is a customized automation solution developed for disposable surgical blade manufacturing. Hotlink designs every machine according to customer products, production capacity, and factory requirements. Therefore, customers can achieve high assembly accuracy, stable production, and flexible manufacturing.
Compatible with Different Handle Sizes
The Surgical Blade Assembly Machine supports both long and short plastic handles.
Operators can switch between different handle specifications quickly. Moreover, the machine requires only simple adjustments, which helps reduce downtime and improve production efficiency.
Supports Various Surgical Blade Sizes
Different surgical procedures require different blade models. Therefore, our machine supports a wide range of disposable surgical blades.
The precision assembly system accurately positions each blade before assembly. As a result, the machine maintains consistent assembly quality throughout the production process.
Customized Production Capacity
Every customer has different production requirements.
Therefore, Hotlink customizes the production speed and machine configuration according to the required output. Whether customers need small-batch production or high-volume manufacturing, we can provide a suitable solution.
Flexible Component Brand Selection
Customers can select their preferred component brands according to company standards.
Available options include:
- PLC
- Servo motors
- Vision inspection systems
- Sensors
- Pneumatic components
- Electrical components
- Vibratory bowl feeders
Furthermore, our engineering team recommends the most suitable configuration based on production requirements and budget.
Optional Soundproof Enclosure
Some production environments require lower operating noise.
Therefore, the Surgical Blade Assembly Machine offers an optional soundproof enclosure. Customers can choose this configuration according to their factory environment and production requirements.

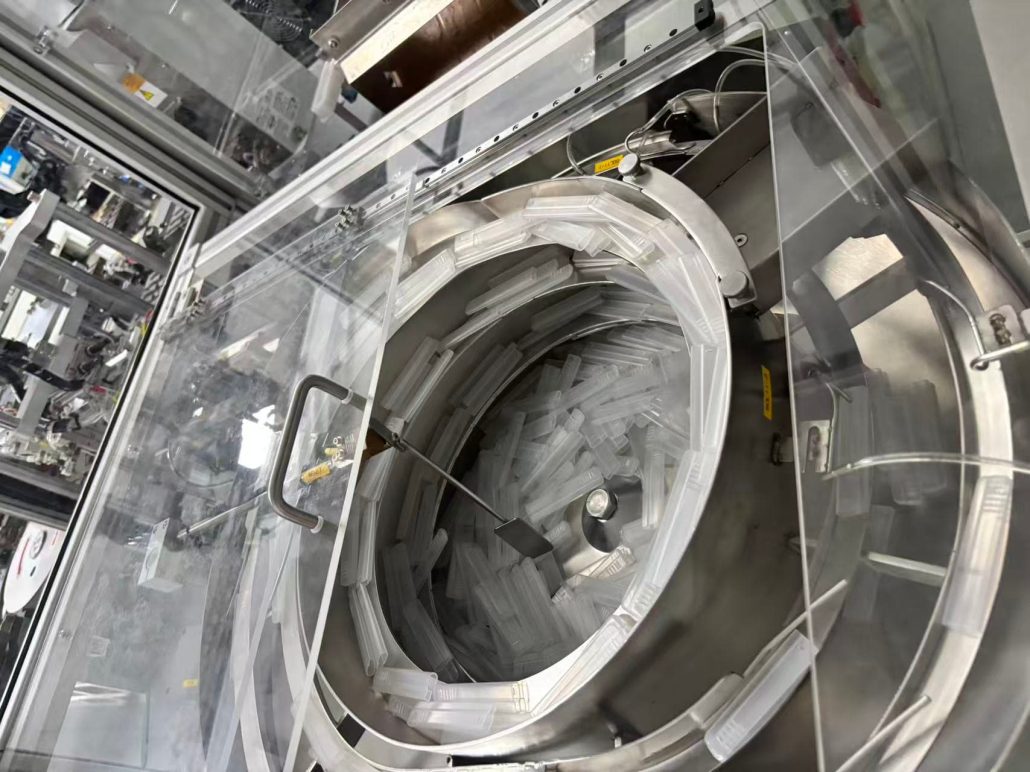

Multiple Vibratory Bowl Feeder Options
The vibratory bowl feeder directly affects feeding stability and production efficiency.
Therefore, we provide different feeder configurations, from economical solutions to high-precision systems. Customers can select the most suitable option according to their production speed and budget.
One-Year Warranty
Hotlink provides a one-year warranty for every Surgical Blade Assembly Machine.
During the warranty period, our after-sales engineers provide timely technical support for non-human-related equipment failures. Moreover, we offer remote troubleshooting, technical guidance, spare parts, and maintenance support to ensure stable machine operation.
Complete Surgical Blade Manufacturing Solution
Besides the Surgical Blade Assembly Machine, Hotlink also provides complete automation solutions for disposable surgical blade manufacturing.
Our related equipment includes:
- Surgical Blade Production Line
- Surgical Blade Packaging Machine
- Automatic Surgical Blade Inspection Machine
- Customized Medical Disposable Assembly Machines
By combining these machines, customers can build a complete automated production process from assembly and inspection to final packaging.
For more information about our complete solutions, please visit the related product pages or contact our engineering team.
Complete Surgical Blade Manufacturing Solution
Hotlink provides more than just a Surgical Blade Assembly Machine. We also offer complete automation solutions for disposable surgical blade manufacturing.
Our related equipment includes:
- Surgical Blade Production Line
- Surgical Blade Packaging Machine
- Automatic Surgical Blade Assembly Machine
- Customized Medical Disposable Assembly Solutions
By integrating these machines, customers can build a complete automated production process from component assembly to final packaging, improving production efficiency while ensuring consistent product quality.
To learn more about our complete surgical blade manufacturing solutions, please visit the following product pages:
If you have a new project or need a customized automation solution, please feel free to contact us. Our engineering team will recommend the most suitable equipment based on your products, production capacity, and manufacturing requirements.
We also warmly welcome customers from around the world to visit our factory. During your visit, you can see our machines in operation, discuss your project directly with our engineers, and explore the best automation solution for your production line.
